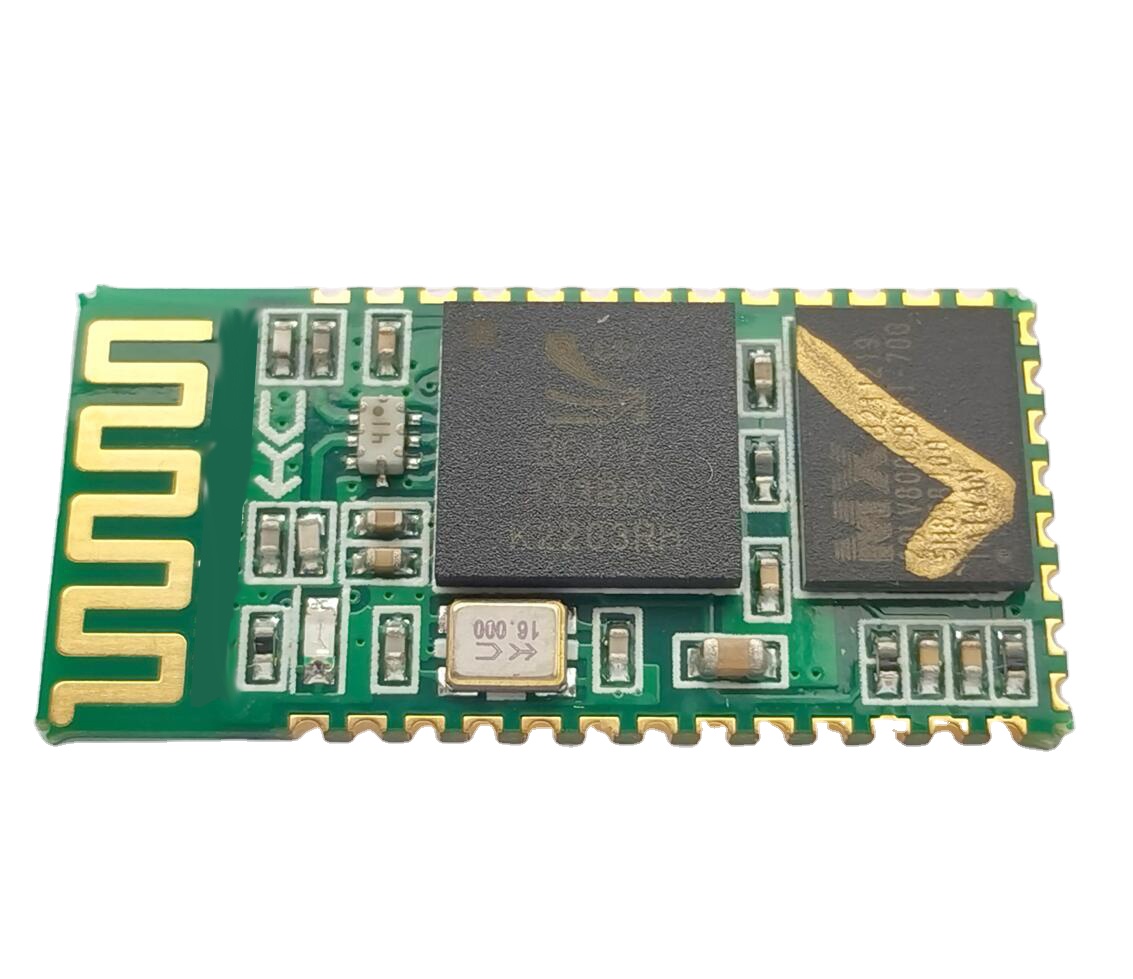

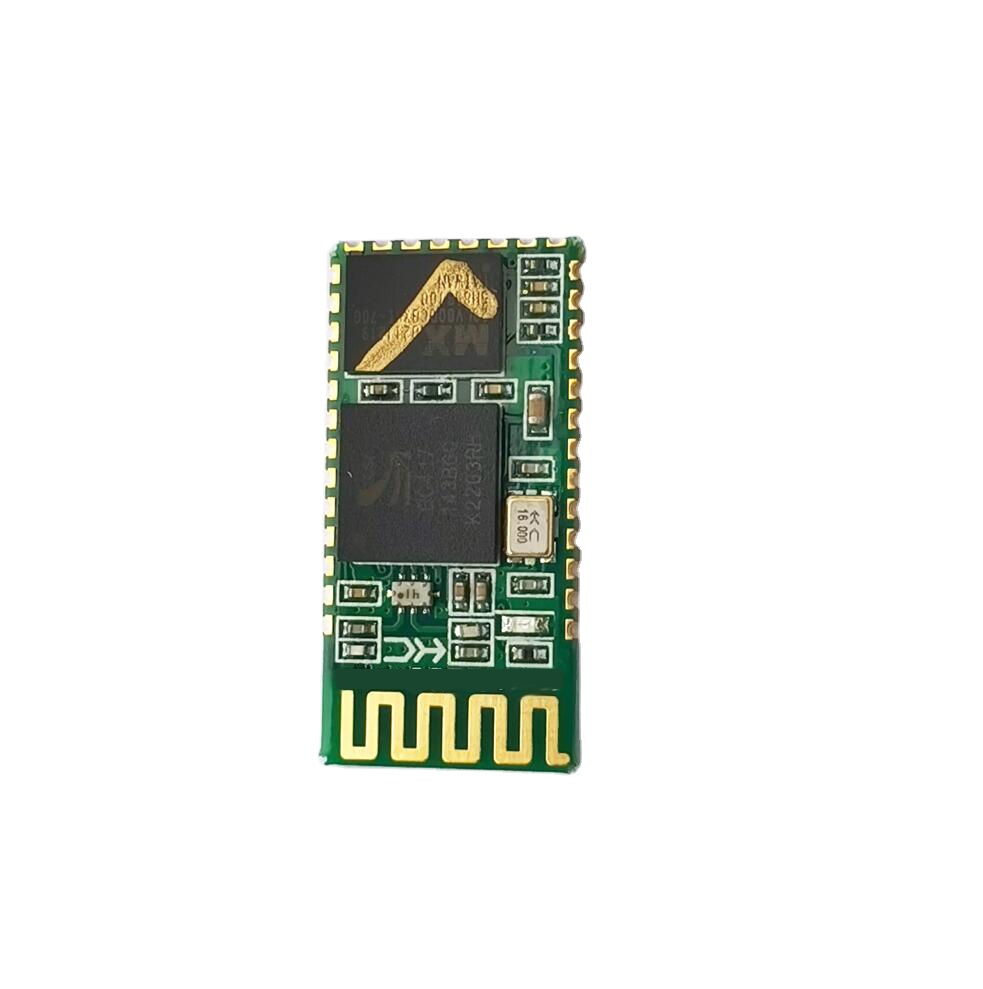

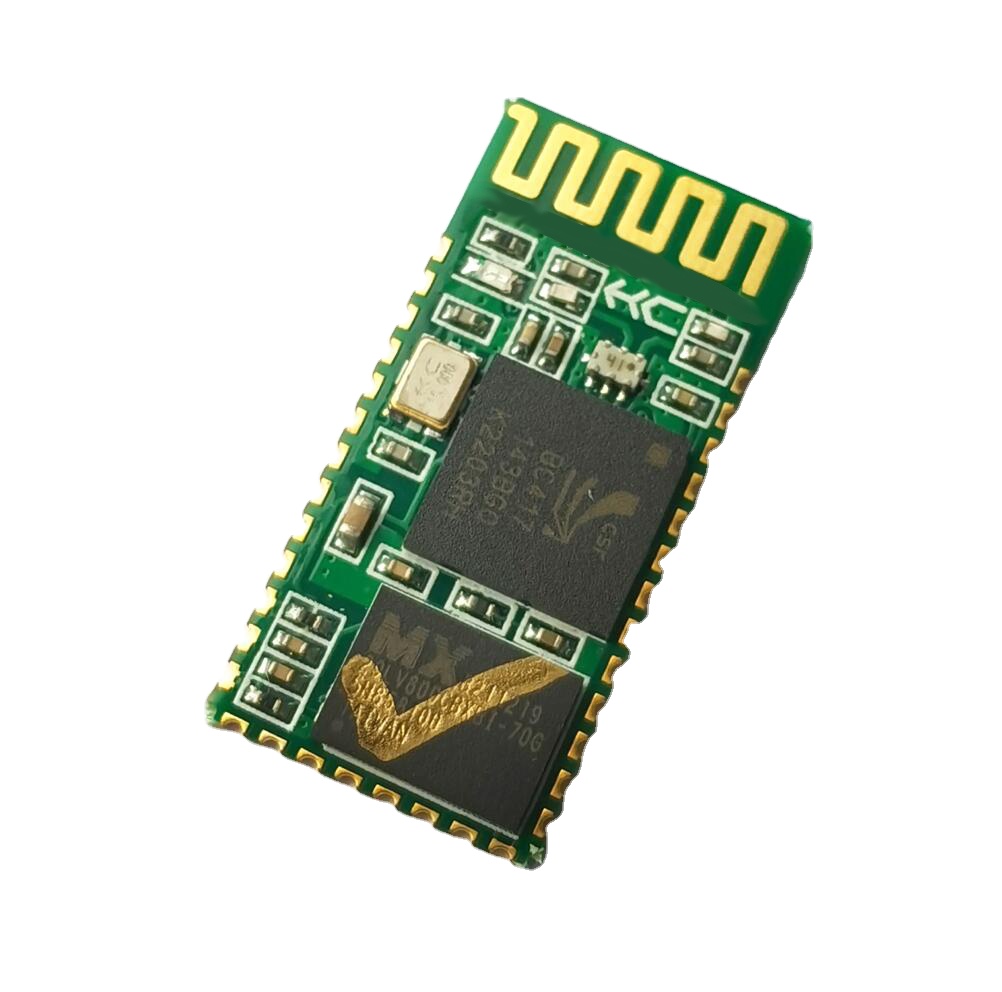

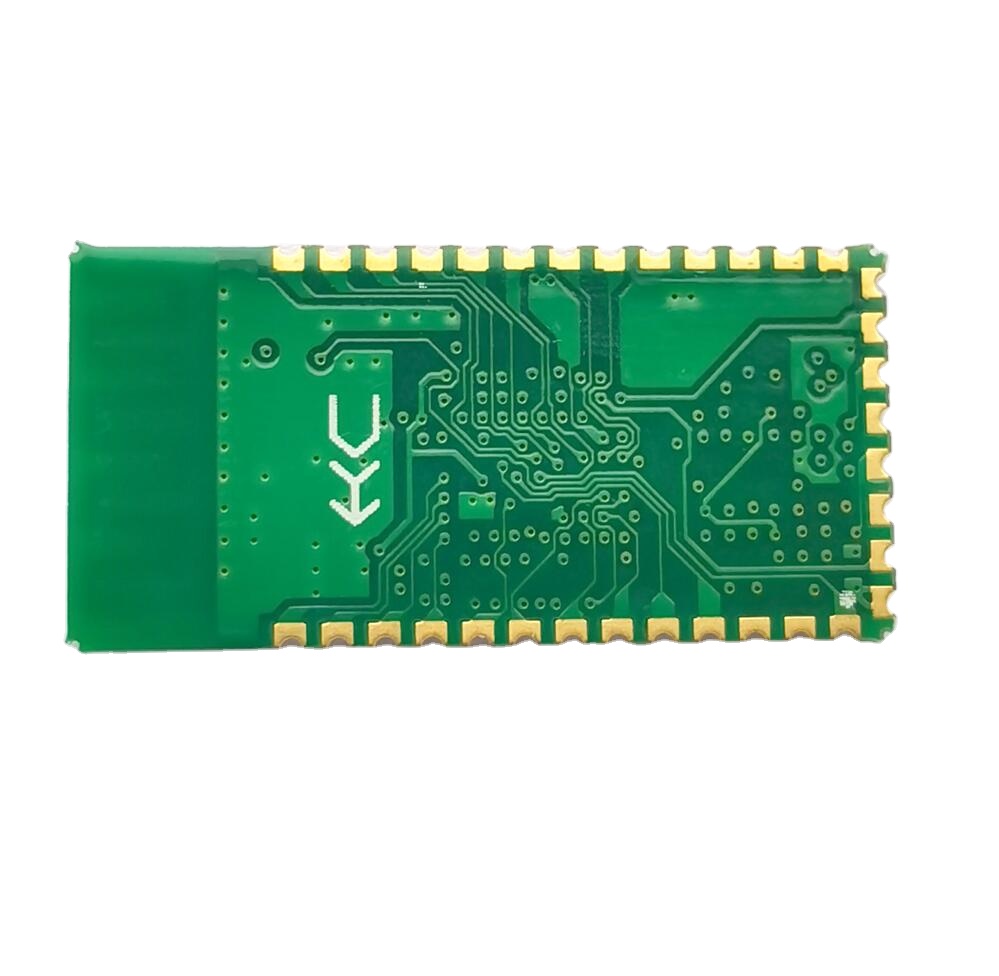

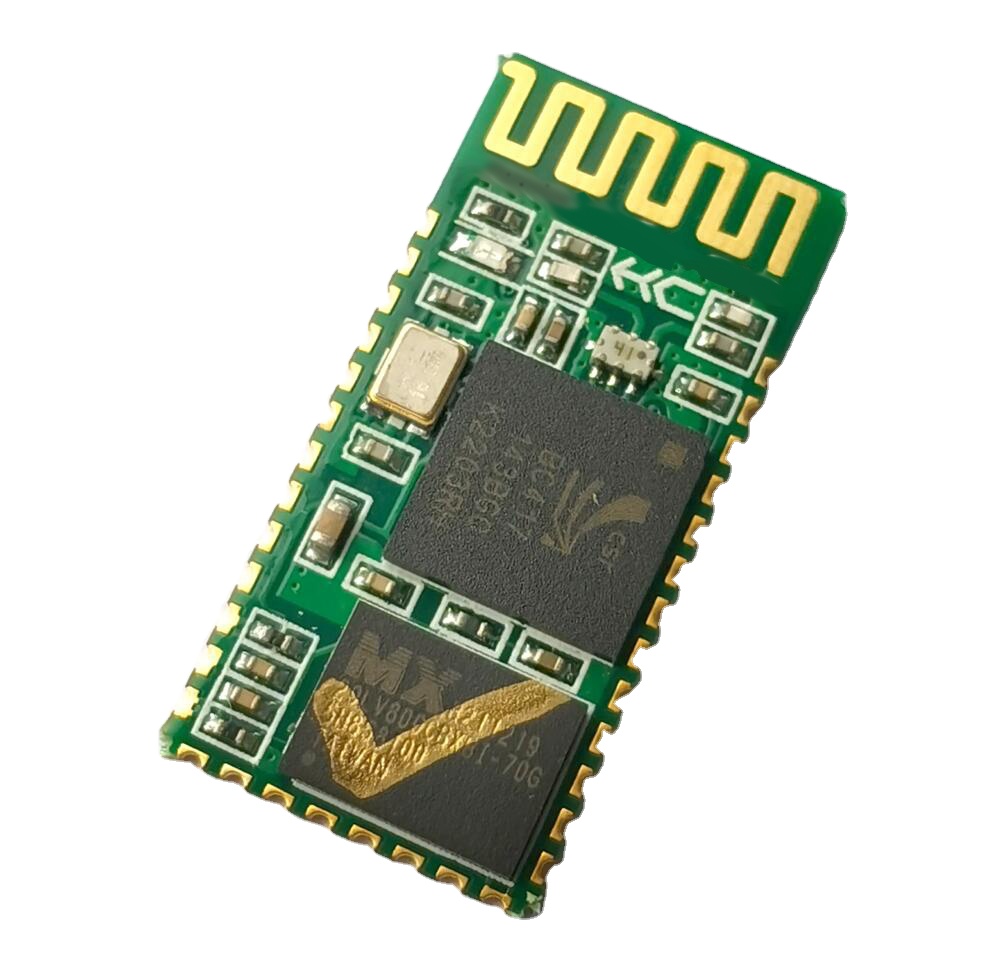

Original Factory High Sensitivity Electronic Circuit Board Pcb Assembly For Gold Metal Detector

Product Description

About us
We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services.
Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.
Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.
Main products

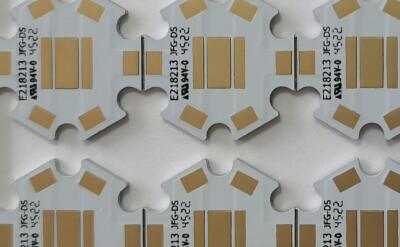

Main Product 1

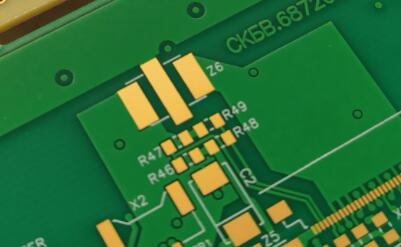

Main Product 2

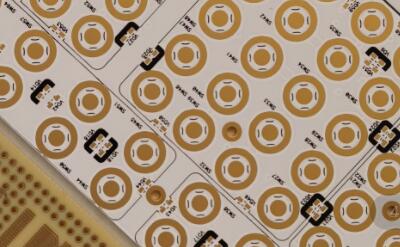

Main Product 3

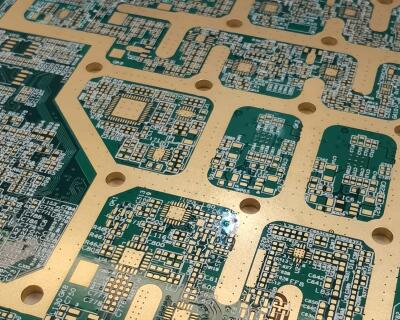

Main Product 4

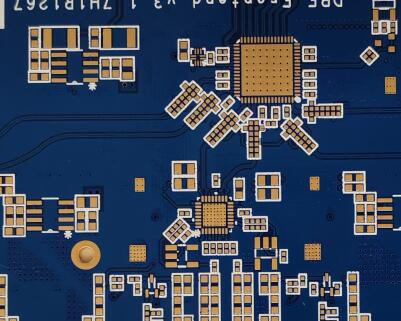

Main Product 5

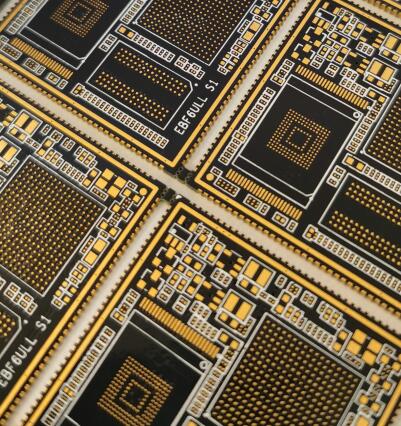

Main Product 6

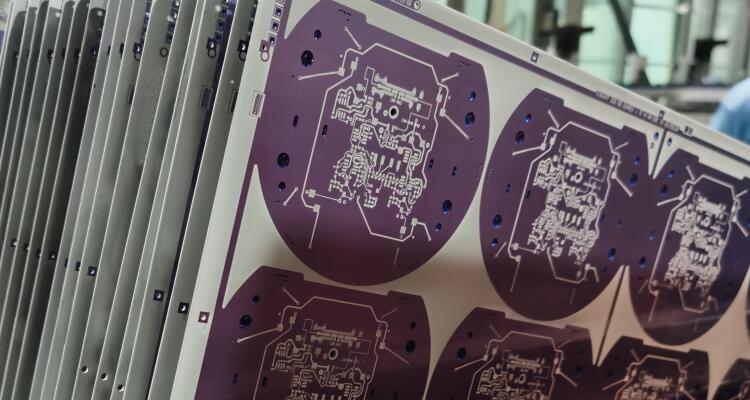

Main Product 7

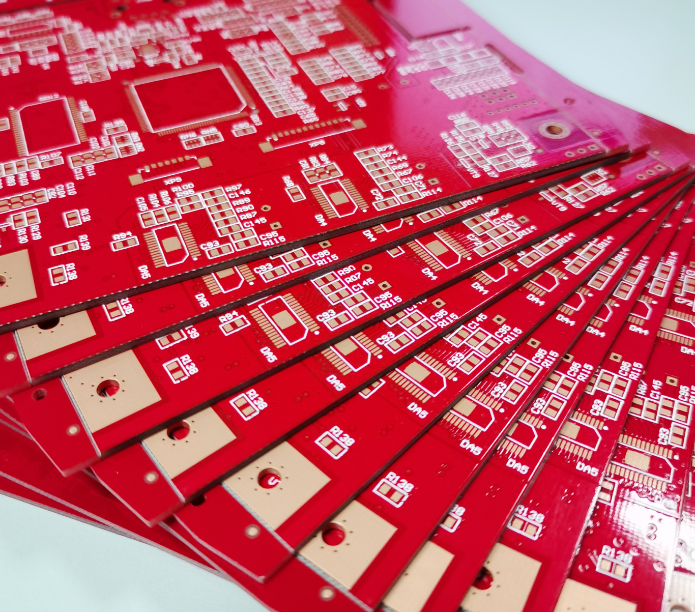

Main Product 8

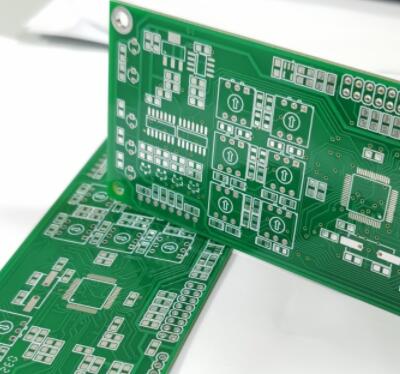

Main Product 9
Production Line and Equipment

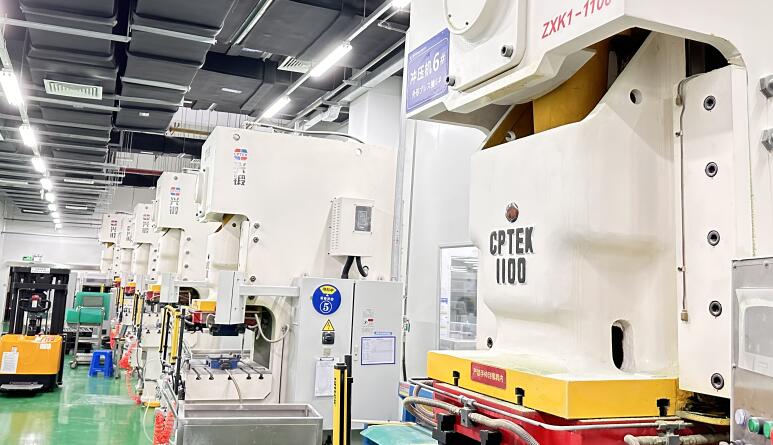

Equipment 1

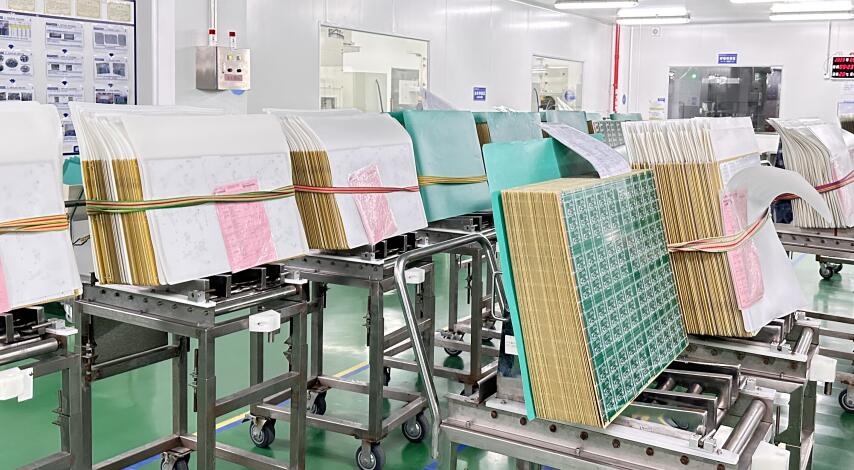

Equipment 2

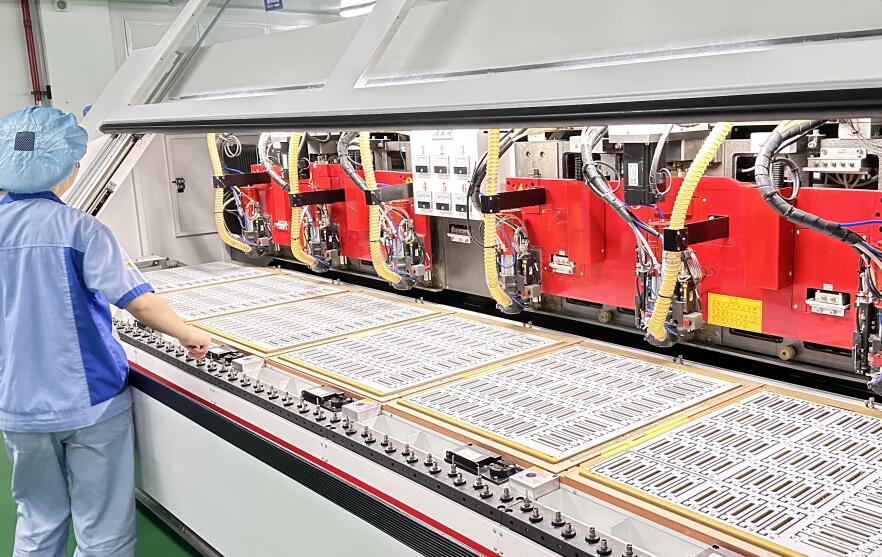

Equipment 3

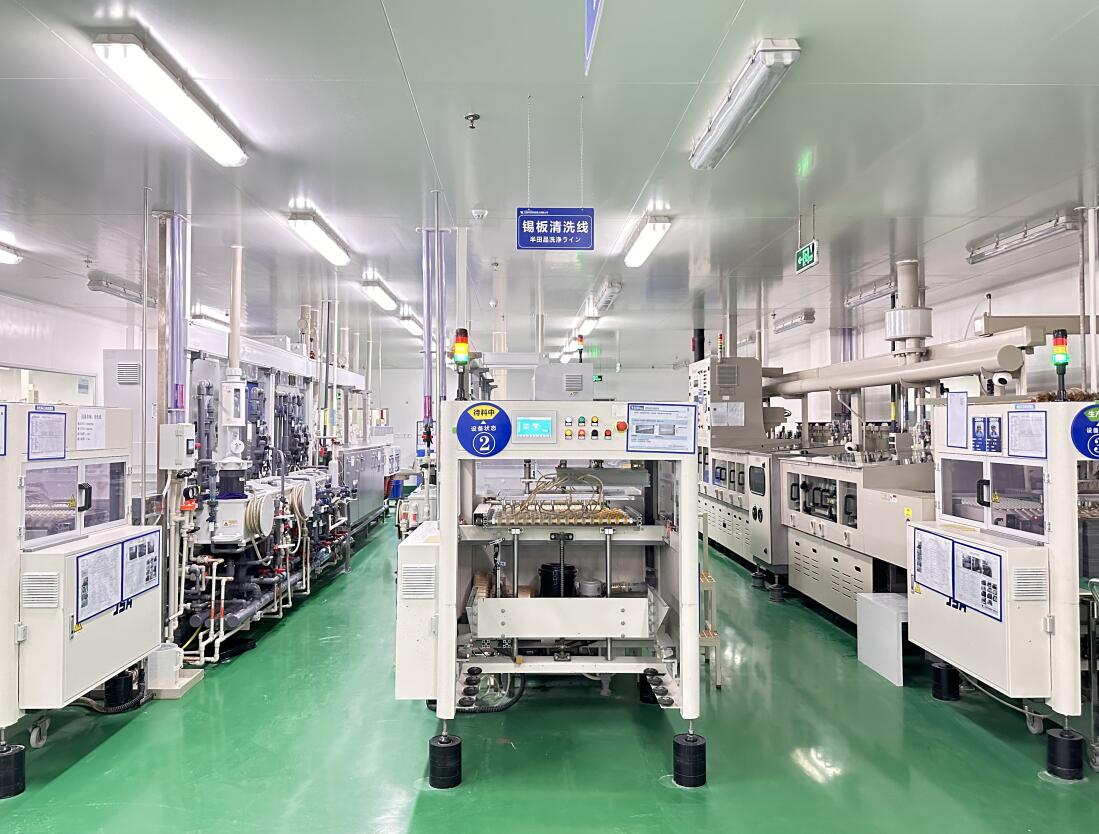

Production Facility Overview

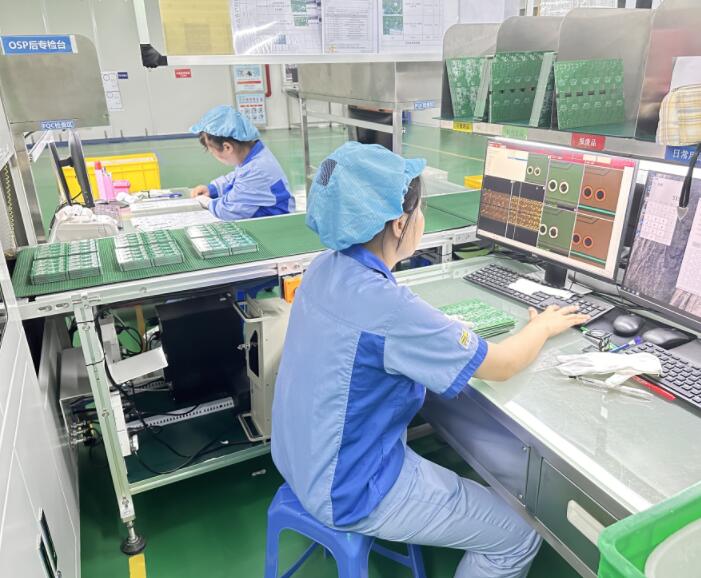

Equipment 4

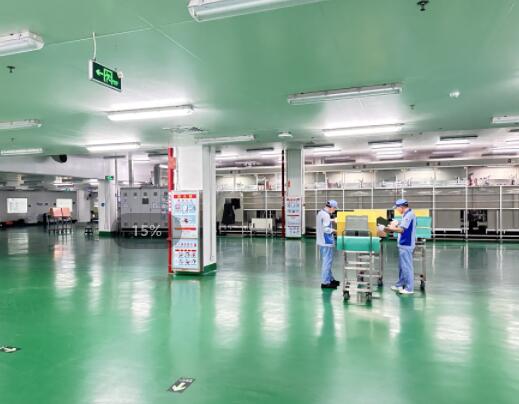

Equipment 5

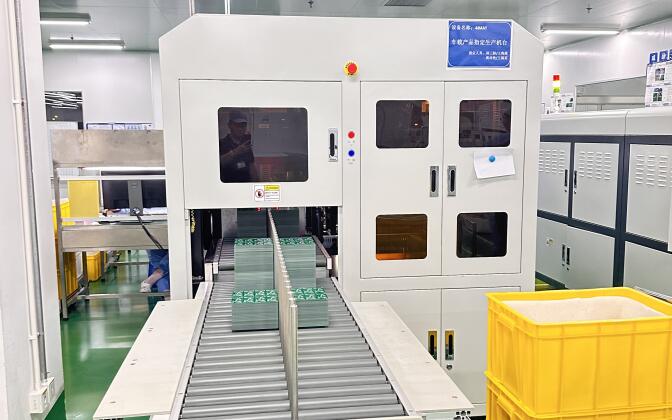

Equipment 6

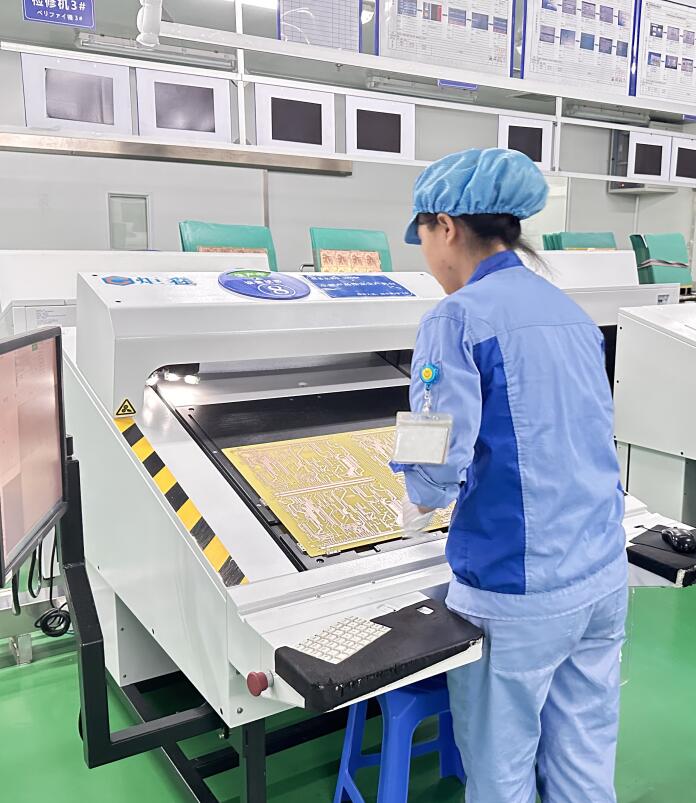

Equipment 7

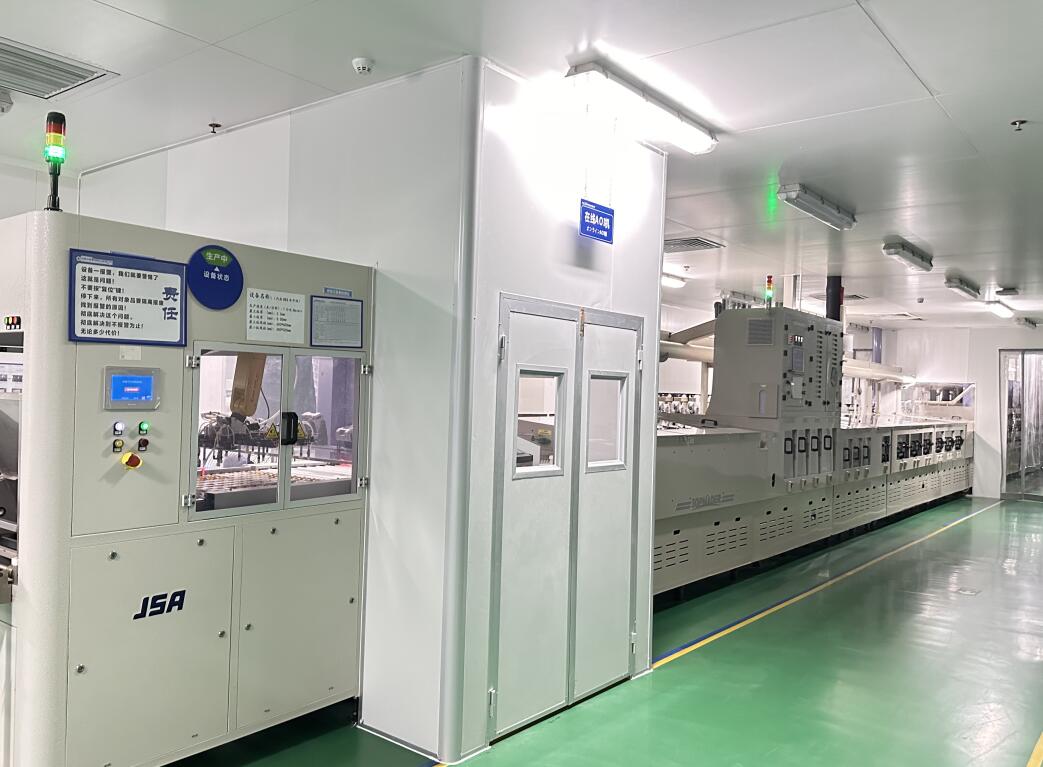

Equipment 8
Manufacturing Capability
Category Volume Production Sample Processing
Layer Count 1-68L 64 Layer
Max Thickness 10mm (394mil) 14mm (551mil)
Min Line Width/Space Inner Layer 2.2mil / 2.2mil 2.0mil / 2.0mil
Outer Layer 2.5mil / 2.5mil 2.2mil / 2.2mil
Alignment Capability With Core Board ±25um ±20um
Inner Layer Alignment ±5mil ±4mil
Max Copper Weight 6oz 30oz
Hole Size Mechanical Drilling ≥0.15mm (6mil) ≥0.1mm (4mil)
Laser Drilling 0.1mm (4mil) 0.050mm (2mil)
Max Size Unit Size 850mm x 570mm 1000mm x 600mm
Panel Size 1250mm x 570mm 1320mm x 600mm
Aspect Ratio Unit Size 20:1 28:1
Panel Size 25:1 35:1
Material Options Lead-free / Halogen-free EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF
High-speed PCB Material Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933
High-frequency PCB Material Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27
Others Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000
Surface Finished HAL, HAL-LF, ENIG, IMMERSION TIN, OSP, IMMERSION SILVER, GOLD FINGER, Hard Gold/Soft Gold Plating
Special Technology Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, mixed dielectric RF PCB, Busbar PCB
QUALITY ASSURANCE STANDARDS:
  • Strict adherence to quality management systems ensuring premium product builds.
  • Operating strictly under ISO 9001, ISO 14001, IATF 16949, RoHS, REACH, UL, and CQC standards.
  • Active process controls involving all staff members across the entire assembly cycle.
  • Dedicated quality objective targeting 100% defect-free shipments.
  • Standard shipping acceptance criteria driven by customer specifications and IPC standards.
  • Collaborative product testing alongside customers to optimize and refine engineering design.
Laboratory capabilities

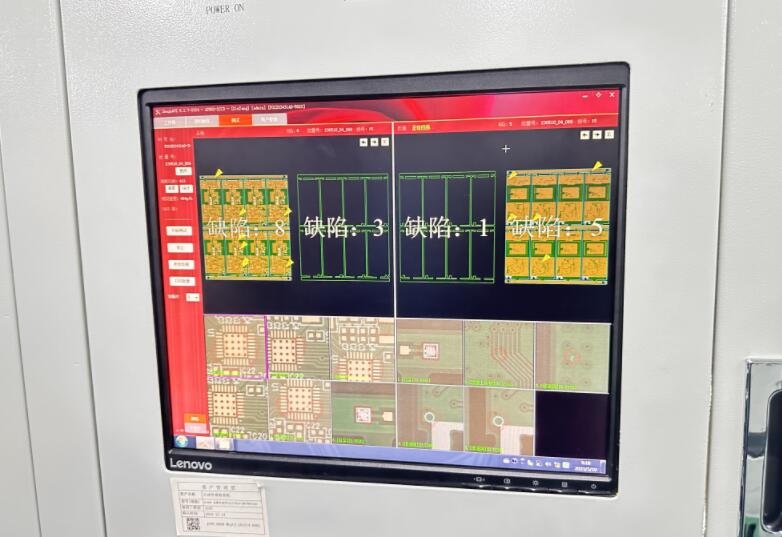

Lab Facility 1

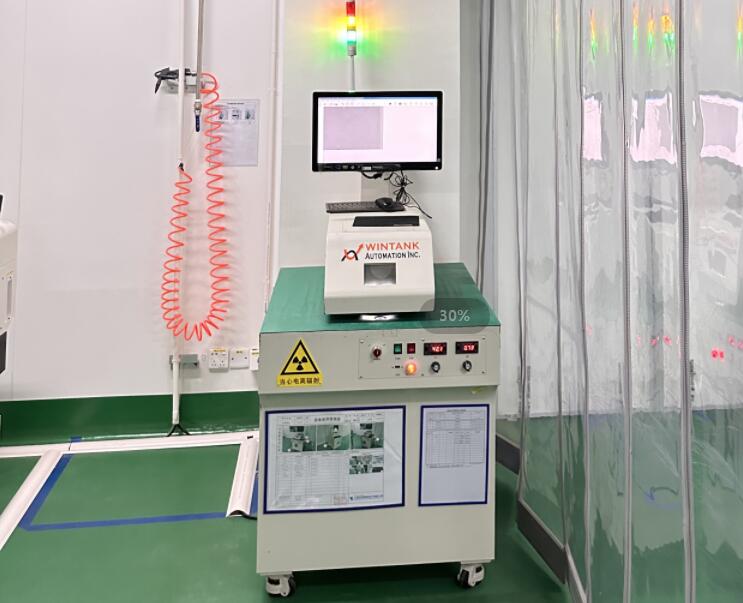

Lab Facility 2

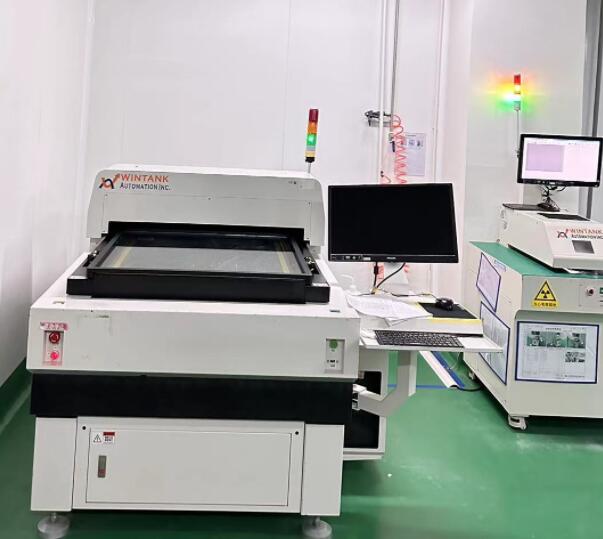

Lab Testing Equipment 1

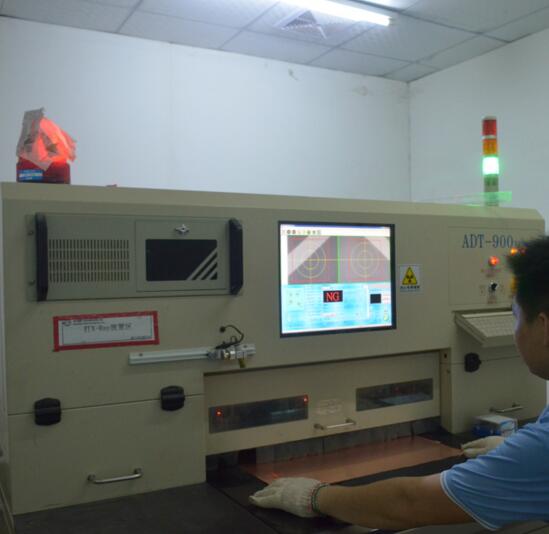

Lab Testing Equipment 2

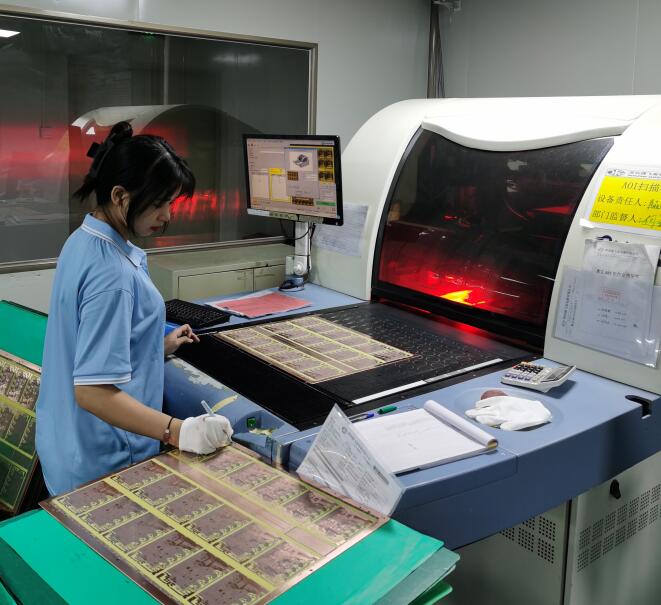

Lab Testing Equipment 3
Packing & shipping
Secure PCB Packing

Shipping Standards

We offer global shipping methods tailored to your requirements:

  • Air Express Shipping: (UPS, DHL, TNT, CTS, and FEDEX)
  • Railway Transport: Safe overland freight.
  • Seaborne Freight: Cost-efficient shipping for volume orders.
  • Customer Designated Options: Custom freight arrangement support.
Layer Sample Shortest Lead Time Sample Standard Lead Time Mass Production Lead Time
2 layer 24 h 3 days 6-7 days
4 layer 36 h 5 days 8-10 days
6 layer 48 h 5 days 8-12 days
8 layer 72 h 5 days 9-12 days
10 layer 4 days 7 days 14 days
12 layer 4 days 7 days 16 days
14 layer 5 days 8 days 16 days
16 layer 5 days 9 days 18 days
18 layer 7 days 10 days 18 days
20 layer and above To be negotiated To be negotiated To be negotiated

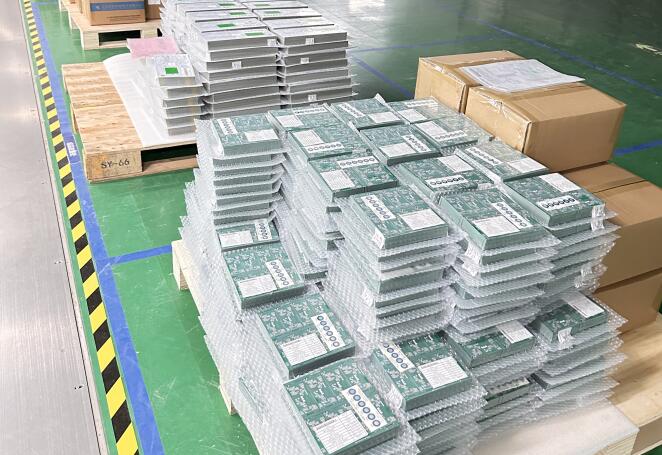

Packaging Box Detail

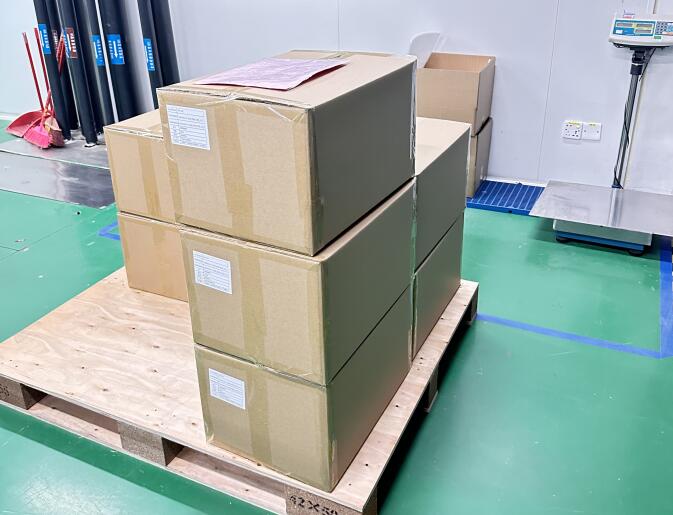

Prepared Shipments
High Efficiency Team
Professional Engineering Team
  • 24-hour technical support
  • 24-hour Gerber file processing
  • Engineering Query (EQ) resolution within 4 to 8 hours
  • Engineering capacity for over 400 new project reviews
Accepted CAD/CAM File Formats

We accept and support:

RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, and GC-CAM files.
Professional Manufacturing Team
  • All manufacturing processes running 24 hours a day
  • Monthly capability of handling 10,000+ high-mix part numbers
  • Processing over 100 Quick Turn Around (QTA) orders daily
  • One-step seamless transition from prototyping to mass production
Efficient Order Operation Center
  • Quick response within 24 hours for all incoming requests
  • Quotation processing completed within 4 hours
Certifications
Certified Quality Documents
Frequently Asked Questions
Q1: What types of printed circuit boards (PCBs) do you specialize in?
A1: We specialize in high-density multilayer PCBs (up to 68 layers for volume, 64 layers for samples), impedance boards, high-frequency boards, thick copper boards, 5G high-speed boards, buried/blind via boards, HDI, rigid-flex boards, and customized solutions.
Q2: What is the maximum board thickness and aspect ratio you can achieve?
A2: For sample processing, we can achieve a maximum board thickness of up to 14mm with an aspect ratio of up to 35:1. For volume production, the standard max thickness is 10mm with a 25:1 aspect ratio.
Q3: Which certifications and quality guidelines does your manufacturing follow?
A3: Our manufacturing facilities strictly operate under quality management systems including ISO 9001:2015, ISO 14001:2015, IATF 16949:2016, UL, CQC, RoHS, and REACH guidelines.
Q4: What is the shortest lead time for prototype samples?
A4: The shortest lead time is 24 hours for 2-layer PCBs, 36 hours for 4-layer PCBs, 48 hours for 6-layer PCBs, and 72 hours for 8-layer PCBs.
Q5: Which CAD and Gerber file formats do your engineers support?
A5: Our engineering team supports and accepts RS-274-X, RS-274-D, CAD, DXP, Protel 99 SE, PADS, and GC-CAM formats. We handle file preprocessing and EQ queries in 4 to 8 hours.
Q6: What shipping options do you provide for final orders?
A6: We offer global options including Air Express Shipping (UPS, DHL, TNT, CTS, and FEDEX), Railway Freight, Seaborne Transport, and client-designated logistics partners.
