We are a leading manufacturer specializing in high-density multilayer printed circuit boards and specialty boards. With certifications including UL, ISO9001:2015, ISO14001:2015, CQC, IATF16949:2016, and "National Military Standard," we provide top-quality products and services. Our extensive product range includes multilayer boards, impedance boards, high-frequency boards, high TG thick copper foil boards, 5G high-speed boards, buried blind via boards, aluminum-based boards, hybrid dielectric boards, HDI, rigid-flex boards, specialty boards, and customized solutions.
Driven by technological innovation, our products are widely used in industries such as communication equipment, industrial control, automotive electronics, energy and power, medical devices, IoT, research institutions, aerospace, and defense. With over 19 years of experience, we have served over 1,000 technology innovation-oriented enterprises with rapid prototyping and mass production services. We are committed to delivering cutting-edge solutions and exceeding customer expectations in the dynamic electronics industry.
Please communicate with customer service before purchasing to confirm the installation holes of our board and the installation and fixing methods of the original machine shell. Contact customer service before purchasing to guide you on how to install and confirm before purchasing.
Measure the size of the original machine board before placing an order to ensure that our board can be put in. If you are not sure whether it can be used, please take a photo to confirm with customer service.

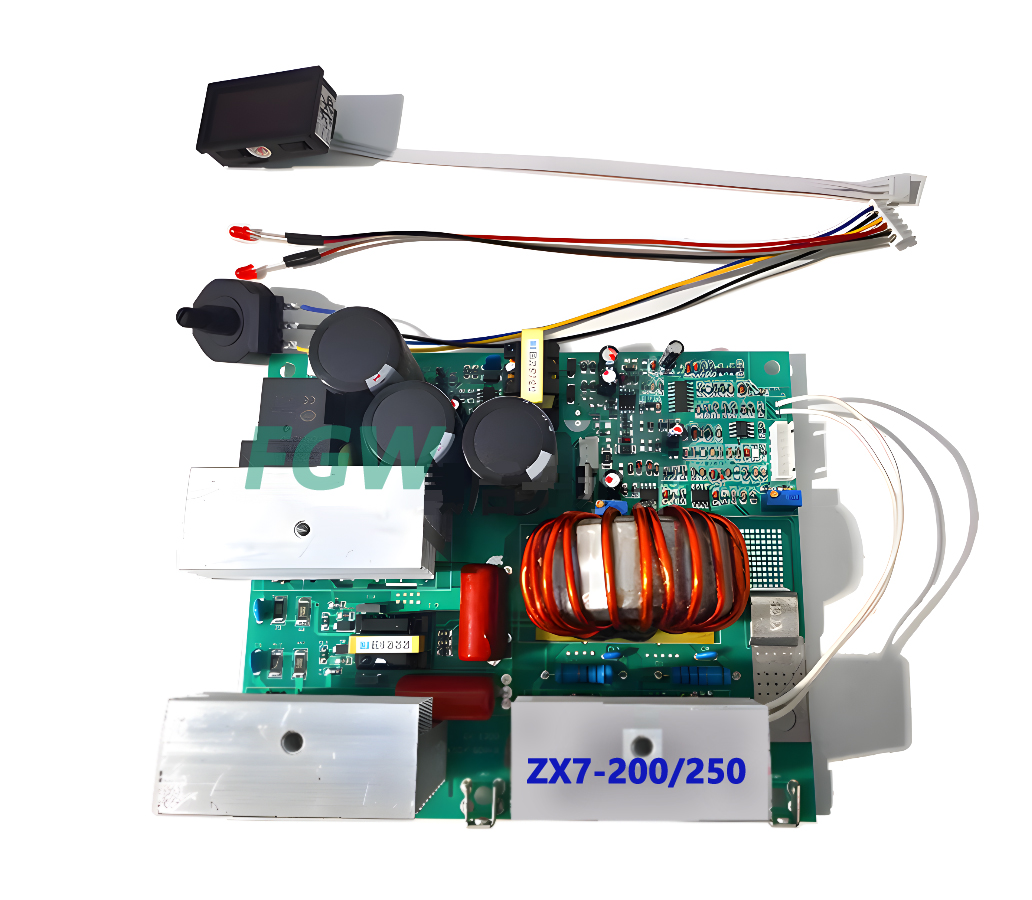

We only need a knob to adjust the current size and install it in front of the machine. You still use our one knob as you did before. If your machine has multiple knobs, the other buttons will not be used. Please be aware of this.
This single board is not compatible with your previous display. If you need a display, please purchase our package with digital display. If your machine does not have a display or does not need a display, just purchase the standard package. The standard package comes with a potentiometer and a wiring harness with an indicator light. The size of the digital display is 45mm*26mm.
It can only be connected to 220V AC, not 380V power supply, and a single power supply is stable.
If there are any problems with installation and use after receiving the goods, please contact customer service, and do not return the goods directly, thank you!
| Rigid PCB Manufacturing Capability | ||
|---|---|---|
| Category | Volume Production | Sample Processing |
| Layer Count | 1-68L | 64 Layer |
| Max Thickness | 10mm (394mil) | 14mm (551mil) |
| Min Line Width/Space (Inner) | 2.2mil / 2.2mil | 2.0mil / 2.0mil |
| Min Line Width/Space (Outer) | 2.5 / 2.5mil | 2.2 / 2.2mil |
| Alignment (Core Board) | ±25um | ±20um |
| Alignment (Inner Layer) | ±5mil | ±4mil |
| Max Copper | 6oz | 30oz |
| Hole Size (Mechanical) | ≥0.15mm (6mil) | ≥0.1mm (4mil) |
| Hole Size (Laser) | 0.1mm (4mil) | 0.050mm (2mil) |
| Max Size (Unit) | 850mm X 570mm | 1000mm X 600mm |
| Max Size (Panel) | 1250mm X 570mm | 1320mm X 600mm |
| Aspect Ratio (Unit) | 20:1 | 28:1 |
| Aspect Ratio (Panel) | 25:1 | 35:1 |
| Materials Supported | ||
| Lead-Free / Halogen-Free | EM827, 370HR, S1000-2, IT180A, EM825, IT158, S1000 / S1155, R1566W, EM285, TU862HF | |
| High-Speed PCB Material | Megtron6, Megtron4, Megtron7, TU872SLK, FR408HR, N4000-13 Series, MW4000, MW2000, TU933 | |
| High-Frequency PCB Material | Ro3003, Ro3006, Ro4350B, Ro4360G2, Ro4835, CLTE, Genclad, RF35, FastRise27 | |
| Others | Polyimide, Tk, LCP, BT, C-ply, Fradflex, Omega, ZBC2000 | |
| Surface Finished & Special Technologies | ||
| Surface Finished | HAL, HAL-LF, ENIG, IMMERSION TIN, OSP, IMMERSION SILVER, GOLD FINGER, Hard Gold/Soft Gold Plating | |
| Special Technology | Blind & buried holes, Via in pad, Semi-plating holes, Counterbore, Step mounting holes, drill Mixed RF PCB, Busbar PCB | |
Actual conditions are subject to confirmation with customer service.
As PCBs are custom products, returns are not supported. For quality issues, please contact customer service for a refund or replacement, but we do not bear any losses or costs beyond the product value. Delays in delivery due to force majeure factors such as power outages or water supply interruptions will not be compensated.
If there are any issues or special instructions, please communicate directly with customer service for confirmation. Do not leave messages, as we will not be responsible for any missed messages. Before and after payment, please confirm the process, quantity, and layers with customer service. Problems that arise after production or shipment will not be eligible for refunds. Since this product requires a high level of expertise, if the purchasing personnel are not knowledgeable, please confirm with your engineer or customer service. We will not be responsible for any issues caused by the customer's lack of understanding.
Orders placed before 17:00 are considered as placed on the same day; orders placed after 17:00 are considered as placed the next day. "24-hour delivery" refers to one day, not 24 hours. The delivery time provided by customer service and on the page does not include Sundays or holidays.
Green solder mask, white silkscreen, 1.6mm board thickness, HASL, 1oz copper thickness, vias with solder mask, line width/spacing 0.2mm, vias above 0.3mm. The Gerber format is used according to the provided files. (The quotation is based on standard processes; please inform customer service of any special process requirements for a new quotation.)
We ship PCB orders with the following options:
| Layer | Sample Shortest Lead Time | Sample Standard Lead Time | Mass Production Lead Time |
|---|---|---|---|
| 2 layer | 24 h | 3 days | 6-7 days |
| 4 layer | 36 h | 5 days | 8-10 days |
| 6 layer | 48 h | 5 days | 8-12 days |
| 8 layer | 72 h | 5 days | 9-12 days |
| 10 layer | 4 days | 7 days | 14 days |
| 12 layer | 4 days | 7 days | 16 days |
| 14 layer | 5 days | 8 days | 16 days |
| 16 layer | 5 days | 9 days | 18 days |
| 18 layer | 7 days | 10 days | 18 days |
| 20 layer and above | To be negotiated | To be negotiated | To be negotiated |
24h technical support & Gerber files handling. Complete EQ within 4-8 hours. Support for 400 new project engineering reviews.
RS-274-X, RS-274-D CAD, DXP, Protel 99 SE, PADS, GC-CAM.
All processes running 24 hours. Production capacity of over 10K high-mix part numbers monthly. Over 100 QTA orders processed daily. One-step service from prototype to mass production.
24 hours quick response and 4 hours quick response for quotation requests.
We accept Gerber and CAD formats including RS-274-X, RS-274-D, DXP, Protel 99 SE, PADS, and GC-CAM files.
Orders placed before 17:00 are recorded as placed on the same day, while orders placed after 17:00 are counted on the next day. Note that "24-hour delivery" represents one working day and does not include Sundays or public holidays.
Since PCBs are custom-manufactured products, returns are not supported. For any verified quality issues, please contact customer service for a refund or replacement. However, we do not cover additional losses or costs beyond the actual product value.
We offer multiple shipping channels including Air shipping (via UPS, DHL, TNT, CTS, and FEDEX), Railway shipping, Seaborne freight, or shipping methods designated by the customer.
Our standard process includes a green solder mask, white silkscreen, 1.6mm board thickness, HASL surface finish, 1oz copper thickness, vias covered with solder mask, line width/spacing of 0.2mm, and vias above 0.3mm. Special requests can be quoted separately through customer service.
